Features

  • High load capacity enabling transport of e-bikes and heavy mountain bikes
  • Possible to increase the load capacity to 4 bikes by adding Thule VeloSpace XT Bike Adapter
  • Extra-long wheel trays enabling transport of large bikes (up to 1300 mm wheelbase).
  • Adjustable pump buckles with extra-long wheel straps for easy fastening of wheels (up to 4.7" wheels) enabling transport of fat bikes

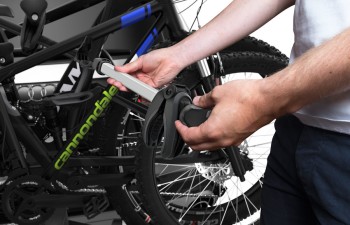

  • Easy mounting of bikes through detachable bike arms with Thule AcuTight torque limiter knobs that click when optimal torque is reached
  • Easy mounting and adjustment of the bike rack before closing the tightening handle, thanks to the towbar coupling’s initial stability
  • Easy trunk access with bikes mounted, thanks to smart foot pedal tilt. Even very large rear doors can be opened due to wide tilt angle
  • Lock your bikes to the bike rack and your bike rack to the towbar (locks included)
  • Combine with Thule BackSpace XT to create an all-round cargo carrier, giving the car 300L of easily accessed, extra loading space
  • Fits 50mm ISO compliant towballs only.  Does not fit 1⅞, 2” or convert-a-ball type
  • Fitted with NZ flat 7 pin trailer wiring plug

Technical Specifications

Max number of bikes
3
Load capacity 60 kg - Reduce capacity by 10kg when installed on camper, bus, motorhome or truck, or when used off-road
Max bike weight 30 kg
Dimensions 135 x 73 x 79 cm
Folded dimensions 135 x 73 x 31 cm
Weight 20.6 kg
Fits frame dimensions 22-80 mm
Detachable frame holders
Distance between bikes 19 cm
Carbon frame compatible ✓ Adapter/s required: Thule Carbon Frame Protector
Wheel mounting on adjustable holders Pump buckles
Tilt function (with bikes)
Fits cars with exterior spare tyre ✓ Adapter/s required: Thule VeloSpace XT 3-Bike Spare Wheel Adapter
Rear lights
Power connector 7-pin
One Key System compatible
Lockable bike-to-rack
Lockable rack-to-vehicle
Model number 939000
