Features

Features

  • Easily mount Thru-axle bikes (9-15mm) and standard Quick-release bikes (9 mm). Fits 20x110mm Thru-axle bikes with an additional adapter
  • Accommodates bikes with disc brakes

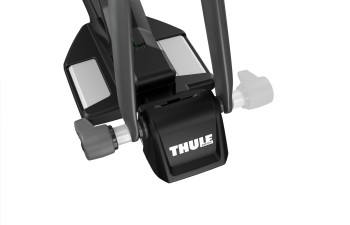

  • Fasten your bike to the fork adapter on the ground for easy mounting

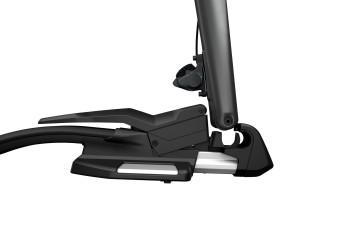

  • The bike slides into the carrier on a guided track on the fork adapter and clicks into place
  • Convenient and easy installation of fork adapter for a secure bike fit
  • The fork mount rack is easy and safe to mount thanks to audible and visual confirmation of correct mounting

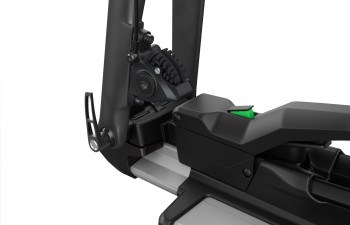

  • Unmount bikes from the rack easily with a release lever

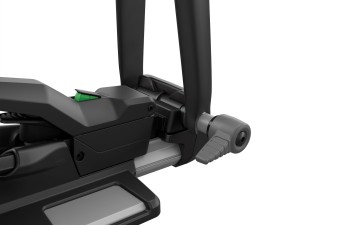

  • Safe mounting of Quick-release bikes thanks to Thule AcuTight torque limiter knob that click when optimal torque is reached
  • Locks the bike to the bike rack and the bike rack to the roof racks
  • Easy to switch carrier position from one side of your car to the other

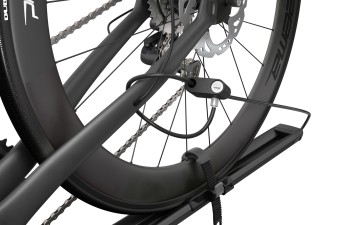

  • Adjustable protective wheel strap holds the rear wheel securely in place
  • Mounts to all Thule rack systems, round bars and most factory racks

Technical Specifications

Load capacity 18 kg
Dimensions 140 x 21 x 15.3 cm
Weight 3.5 kg
Fits round frame dimensions All
Fits maximum oval frame dimensions All
Max tire width 3 in
Max wheel size (diameter) 29 in
Max wheelbase 1250 mm
Thru-axle compatible  ✓
Carbon frame compatible  ✓
Carbon fork dropout compatible  ✓
Fits roof racks with 20x20 mm T-tracks  ✓
Fits roof racks with 24x30 mm T-tracks  ✓  Adapter/s required: Thule T-track Adapter 889-3
Fits Thule WingBar Evo  ✓
Fits Thule WingBar Edge  ✓
Fits Thule WingBar  ✓
Fits Thule ProBar  ✓
Fits Thule SquareBar  ✓  Adapter/s required: Thule FastRide & TopRide Around-the-bar Adapter
Fits Thule SlideBar  ✓
One Key System compatible  ✓
Color Black
Model number 568001
